Blazor WebAssembly, Monaco and Antlr – Building the AutoStep Editor as a Blazor App

I’m writing this post to show people the possibilities of WebAssembly and Blazor, using an open-source project I’m working on right now.

In this post we’ll cover:

  • Integrating the Monaco Code Editor with Blazor (and Razor Component Libraries in general)
  • Blazor to TypeScript Interop Tips
  • Manual Tokenisation of Code in Monaco (by a .NET Assembly!), including a quick look at performance.

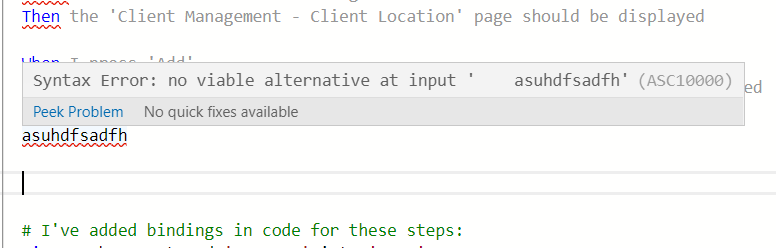

  • Feeding Compilation Results from .NET to Monaco.

With the tools available to me, I can do real-time syntax highlighting and compilation of AutoStep tests in-browser, using WebAssembly to run my .NET library that does a lot of the heavy lifting, and the Monaco editor to provide the actual text editor behaviour. You can do some really cool stuff when you combine the power of .NET with a web-based user interface.

You can find all the code for the AutoStep Editor I’m going to be referencing in the GitHub repository, https://github.com/autostep/AutoStep.Editor.

Before we dive in, there’s a bit of background to cover.

Background

To give a little context, I’m currently building the AutoStep Toolkit.

AutoStep is a new compiler, linker and runner for BDD (Business Driven Development) tests, based on Gherkin syntax, but with some extra language features.

You can find the core library that provides this functionality at https://github.com/autostep/AutoStep.

I need to build a User Interface for writing AutoStep tests that is targeted at non-developer users, so using Visual Studio or VS Code as an editor doesn’t give the user experience I want.

I’ve chosen Blazor because:

  • I can load my netstandard AutoStep package directly into WebAssembly, so I don’t need a server component to run compilation.
  • I prefer to keep the amount of Javascript I have to write to a minimum.
  • I can share types between the front-end and the AutoStep project system.

Right now, I’m just building the basic editor control, before we build the rest of the user interface around it.

Below you can see a little demo GIF of how the editor control looks right now. You can see real-time syntax highlighting and test compilation as you type, with syntax errors being presented by the editor.

The rest of this post is basically going to go over how it works, and some of the WebAssembly magic that gives us this behaviour.

Integrating Monaco

Monaco is the VS Code editor, released as a standalone package that anyone can use; it’s really powerful, and gives us loads of basic text editor behaviour out of the box, even before we add the syntax highlighting and IDE-type functionality.

The first task was to get Monaco working as a Blazor component. I knew that I would need at least some Javascript code to function as the Interop layer, so rather than put that code in my main Blazor Client project (AutoStep.Editor.Client), I decided to put all the Monaco behaviour in a new Razor Component Library (AutoStep.Monaco), which I can use from my main project.

That way, I can keep the node_modules out of my main application project, nice and self-contained in it’s own folder.

I feel like it’s a pretty pleasing pattern to keep any JS interop out of the main Blazor app, in separated components. That way, the main application stays clean and only has to worry about components and general app state.

It also makes each component easier to test on its own.

I’m going to use TypeScript for my interop code, partly because I just like being in a typed world, but also because I can then consume the type definitions exposed by Monaco.

The only actual npm package I need to install and redistribute is monaco-editor, but I also need Webpack to compile my TypeScript and bundle everything together, plus the various Webpack plugins.

You can check the full package.json file for the set of required packages. There’s only 10 packages listed, but even these dependencies result in 5483 installed packages!

To configure Webpack correctly, I used the Monaco Webpack Plugin, which just simplifies getting Monaco building under Webpack. If you follow the instructions in their README, you can’t really go wrong.

Static Files in Razor Component Libraries

One nice feature of Blazor is that if you put your static files in the wwwroot folder of a Razor Component project, when you reference your Component project from your main Blazor App project, you can reference those static resources in your HTML, just by using the special _content path:

<!-- Use the name of the referenced project (or package) -->
<script src="_content/AutoStep.Monaco/app.bundle.js"></script>

For this to work with the Webpack build, I had to do two things:

  • Configure Webpack to output my bundles to the wwwroot folder
  • Configure Monaco to load its dependencies from the _content/AutoStep.Monaco path

The first part was straight-forward, you just have to change the Webpack output path:

//...
output: {
  globalObject: "self",
  filename: "[name].bundle.js",
  path: path.resolve(__dirname, 'wwwroot')
},
//...

For the Monaco configuration, the _content path has to be configured in three different locations. The first two are in the Webpack configuration file:

module: {
    rules: [
        // Other rules here...
        {
            test: /\.ttf$/,
            loader: 'file-loader',
            options:
            {
                publicPath: "/_content/AutoStep.Monaco"
            }
        }]
},
plugins: [
    new MonacoWebpackPlugin({publicPath: '/_content/AutoStep.Monaco/', languages: []})
]

I’ve also told the MonacoWebpackPlugin to not include any built-in languages in the output, because I’m not going to need them.

Finally, in the ‘entry point’ of your Javascript/Typescript (my MonacoInterop.ts), you need to tell Monaco where to load its web workers from:

// @ts-ignore
self.MonacoEnvironment = {
    getWorkerUrl: function (moduleId, label) {
        return "./_content/Autostep.Monaco/editor.worker.bundle.js";
    }
};

Once all the above is done, I can just include the app bundle in my Blazor Client index.html file, and it will load in all the Monaco dependencies:

<body>
    <app class="d-flex">Loading...</app>

    <div id="blazor-error-ui">
        An unhandled error has occurred.
        <a href="" class="reload">Reload</a>
        <a class="dismiss">đź—™</a>
    </div>
    <script src="_content/AutoStep.Monaco/app.bundle.js"></script>
    <script src="_content/Blazor.Fluxor/index.js"></script>
    <script src="_framework/blazor.webassembly.js"></script>
</body>

Blazor JS Interop & TypeScript

Once I’ve got the Monaco code loading in, I now need to use it. I’ll just go over a few tips for using TypeScript for doing Blazor JS Interop.

Interop Classes

The first tip is to define a sensible boundary between your .NET code and your TypeScript. First up, let’s define an entry-point TypeScript class attached to ‘window’:

class MyInterop
{
    doSomething()
    {
    }

    getSomething() : string
    {
    }
}

window['MyInterop'] = new MyInterop();

In your C# code, create an internal class of the same name, and encapsulate those methods (I’ve also defined wrappers for the IJSRuntime methods that automatically prefix the name of my TypeScript class):

internal class MyInterop
{
    private readonly IJSRuntime jsInterop;
    private readonly ILogger logger;

    private const string InteropPrefix = "MyInterop.";

    public MyInterop(IJSRuntime runtime, ILogger<MyInterop> logger)
    {
        this.jsInterop = jsInterop;
        this.logger = logger;
    }

    public async ValueTask DoSomething()
    {
        await InvokeVoidAsync("doSomething");
    }

    public async ValueTask<string> GetSomething()
    {
        return await InvokeAsync<string>("getSomething");
    }

    private ValueTask<TResult> InvokeAsync<TResult>(string methodName, params object[] args)
    {
        var fullname = InteropPrefix + methodName;
        logger.LogTrace("InvokeAsync: {0}", fullname);
        return jsRuntime.InvokeAsync<TResult>(fullname, args);
    }

    private ValueTask InvokeVoidAsync(string methodName, params object[] args)
    {
        var fullname = InteropPrefix + methodName;
        logger.LogTrace("InvokeVoidAsync: {0}", fullname);
        return jsRuntime.InvokeVoidAsync(fullname, args);
    }
}

Log your JS Interop calls! This will help a lot with debugging later.

In my AutoStep.Monaco library, I’ve got precisely this set-up (albeit with more methods), with the TypeScript in MonacoInterop.ts, and the C# in MonacoInterop.cs.

I added an extension method to my Razor Component Library that adds my MonacoInterop class to the Service Collection; I can call this during startup in my Blazor App.

public static class ServiceCollectionExtensions
{
    /// <summary>
    /// Add services for the Monaco component.
    /// </summary>
    public static IServiceCollection AddMonaco(this IServiceCollection services)
    {
        services.AddSingleton<MonacoInterop>();
        return services;
    }
}

Then I can inject the MonacoInterop class into any of my Razor Components inside my AutoStep.Monaco project, and invoke my TypeScript methods that way.

Calling Back into .NET Code from TypeScript

When an ‘event’ of some form happens inside the Monaco Editor, I need to invoke a method in my .NET Code.

So far, I’ve found the following pattern to be pretty useful.

First up, add a method to your Interop class to register an event handler.

public async ValueTask RegisterLanguageTokenizer(string languageId, string extension, ILanguageTokenizer tokenizer)
{
    // Wrap the 'tokenizer' in a DotNetObjectReference.
    await InvokeVoidAsync("registerLanguageTokenizer", languageId, extension, DotNetObjectReference.Create(tokenizer));
}

The DotNetObjectReference passes the object to JS in a way that tracks the original object.

In the implementation of ILanguageTokenizer, I have a couple of methods, all marked as [JSInvokable], which indicates they can be called from Javascript.

In your TypeScript Interop class, add the registerLanguageTokenizer method:

registerLanguageTokenizer(languageId: string, extension: string, blazorCallback: IBlazorInteropObject)
{
  // Store the blazorCallback object somewhere to call it in an event handler.
}

The IBlazorInteropObject is something I’ve added; it’s a simple TypeScript interface that defines the useful methods available on the object wrapper Blazor actually passes as that parameter.

/**
 * Interface that defines the useful methods on the .NET object reference passed by Blazor.
 */
export interface IBlazorInteropObject {
    invokeMethodAsync<T>(methodName: string, ...args: any[]): Promise<T>;
    invokeMethod<T>(methodName: string, ...args: any[]): T;

}

I can then use this IBlazorInteropObject to invoke my .NET code.

export class AutoStepTokenProvider implements languages.TokensProvider {
    private callback: IBlazorInteropObject;

    constructor(blazorCallback: IBlazorInteropObject) {
        this.callback = blazorCallback;
    }

    getInitialState(): languages.IState {
        return new AutoStepTokenState(this.callback.invokeMethod<number>("GetInitialState"));
    }

    tokenize(line: string, state: languages.IState): languages.ILineTokens {

        if (state instanceof AutoStepTokenState)
        {
            var result: any = this.callback.invokeMethod("Tokenize", line, state.tokenState);

            return { tokens: result.tokens, endState: new AutoStepTokenState(result.endState) };
        }

        throw "Invalid start state";
    }
}

Line Tokenisation & Syntax Highlighting

For people unfamiliar with it, syntax highlighting code usually involves tokenising a given line of code, which uses a lexer to go through a block of text and produce a set of tokens that give the position of named language constructs, like keywords, variables, strings, etc. The editor then knows which colours to apply to different parts of a line of text.

Monaco allows you to define a ‘grammar’ for a language you want to apply syntax highlighting to., using their Monarch system for describing languages using JSON. Monaco then does the tokenising for you, based on that configuration.

The problem with using Monarch in my situation is that the tokenisation would not be context-sensitive. By that, I mean that the tokenisation can only work off the content of the file it is highlighting, and cannot base the set of returned tokens on anything else.

In my situation, I want to highlight the Given/When/Then lines of a test a different colour if there is no backing step to call; in addition, I only know which part of a step is an argument (in red) based on which step it binds against.

This contextual information cannot be obtained just through using a declarative grammar; I need a more manual approach.

Luckily, Monaco lets you define a manual token provider, using the setTokensProvider method. By implementing the Monaco-defined interface languages.TokensProvider, we can run our own custom code when Monaco needs to re-tokenise a line.

I showed you the TypeScript implementation of that interface earlier, when we were looking at how to call a .NET object from Javascript. All that the AutoStepTokenProvider TypeScript class does is call into an object in our Blazor .NET code, the AutoStepTokenizer, to handle the actual tokenisation.

The JS call for tokenisation must be a synchronous call because the Monaco tokenisation methods don’t allow me to return a promise (although it does execute in a background web worker).

Typically you’d want to make asynchronous calls into your .NET code where possible, but we can’t do that here.

To achieve the required tokenisation performance, I added Line Tokenisation support in the core AutoStep library, which is effectively a special-cased fast path through the normal compilation and linking process.

[JSInvokable]
public TokenizeResult Tokenize(string line, int state)
{
    try
    {
        var castState = (LineTokeniserState)state;

        logger.LogTrace("Tokenise Start in State {0}: {1}", castState, line);

        // Use the project compiler (in the core library) to tokenise.
        var tokenised = projectCompiler.TokeniseLine(line, castState);

        // Create the set of models that Monaco expects
        var tokenArray = tokenised.Tokens.Select(x =>
            new LanguageToken(x.StartPosition, TokenScopes.GetScopeText(x.Category, x.SubCategory)));

        return new TokenizeResult((int)tokenised.EndState, tokenArray);
    }
    catch (Exception ex)
    {
        logger.LogError(ex, "Tokenisation Error");
    }

    return new TokenizeResult(0, Array.Empty<LanguageToken>());
}

Once the AutoStep Core library returns the set of tokens for a line, I need to convert those tokens into TextMate scopes. Scopes are effectively names for the different tokens you can get, and Monaco can style each scope differently.

I put the scope mapping configuration in a static array in a TokenScopes class:

static TokenScopes()
{
    // Set up our scopes.
    InitScope("comment.line.number-sign", LineTokenCategory.Comment);
    InitScope("keyword", LineTokenCategory.StepTypeKeyword);
    InitScope("keyword", LineTokenCategory.EntryMarker);
    InitScope("entity.name", LineTokenCategory.EntityName);
    InitScope("entity.name.section", LineTokenCategory.EntityName, LineTokenSubCategory.Scenario);
    InitScope("entity.name.section", LineTokenCategory.EntityName, LineTokenSubCategory.ScenarioOutline);
    InitScope("entity.name.type", LineTokenCategory.EntityName, LineTokenSubCategory.Feature);
    InitScope("entity.annotation", LineTokenCategory.Annotation);
    InitScope("entity.annotation.opt", LineTokenCategory.Annotation, LineTokenSubCategory.Option);
    InitScope("entity.annotation.tag", LineTokenCategory.Annotation, LineTokenSubCategory.Tag);
    InitScope("string", LineTokenCategory.BoundArgument);
    InitScope("string.variable", LineTokenCategory.BoundArgument, LineTokenSubCategory.ArgumentVariable);
    InitScope("variable", LineTokenCategory.Variable);
    InitScope("markup.italic", LineTokenCategory.Text, LineTokenSubCategory.Description);
    InitScope("text", LineTokenCategory.Text);
    InitScope("entity.step.text", LineTokenCategory.StepText);
    InitScope("entity.step.text.bound", LineTokenCategory.StepText, LineTokenSubCategory.Bound);
    InitScope("entity.step.text.unbound", LineTokenCategory.StepText, LineTokenSubCategory.Unbound);
    InitScope("table.separator", LineTokenCategory.TableBorder);
}

Finally, I define my own theme for Monaco so I can style the scopes:

editor.defineTheme('autostep', {
    base: 'vs',
    inherit: true,
    rules: [
        { token: "markup.italic", fontStyle: 'italic' },
        { token: "string.variable", fontStyle: 'italic' },
        { token: "variable", fontStyle: 'italic' },
        { token: "entity.step.text.unbound", foreground: '#969696' },
        { token: "entity.annotation.opt", foreground: '#fbad38' },
        { token: "entity.annotation.tag", foreground: '#fbad38' }
    ],
    colors: {}
});

editor.setTheme('autostep');

Performance

It’s important to measure performance of code like this, especially because it needs to update the display in real-time as the user types.

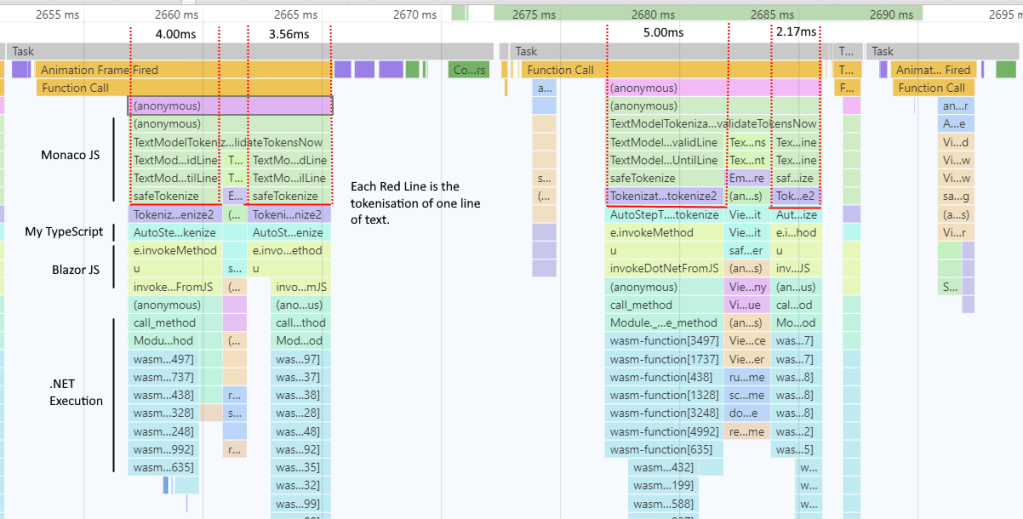

If you run the profiler in Chrome DevTools, you can see the activity happening on the background thread that calls into the WebAssembly system, and get an idea of how long your code is spending in the .NET world.

I’ve highlighted which bits are doing what in the call stack, along with some timings.

It’s pretty quick! Even considering the hops into the WebAssembly space and back, tokenisation generally ranges between 3 and 6ms.

A lot of that performance, though, is down to the awesome parser engine we use in the AutoStep Core library, Antlr.

Antlr Overview

Antlr is a parser generator. It can take a grammar describing your language, and output a parser that will turn a block of text into a structured parse tree.

Considering the complexity of the task it has to perform, it produces really efficient parsers.

The Antlr generator is written in Java, but there are runtimes for the parser for a number of platforms, including .NET.

I’m not going to go into loads of depth on how Antlr works, because it is a really broad topic, but I can strongly recommend the excellent book by Terrence Parr, which is a great intro and reference for Antlr.

The full lexer grammar and parser grammar for the AutoStep language can be found in the AutoStep repo.

Line Tokenising Parser

The full parse tree for AutoStep works over the entire file, validating positions and order in a detailed way. That won’t work for tokenising a single line at a time (and risks being too slow), so I added a simpler line-by-line entry-point into the parser (AutoStepLineTokeniser) that helps me tokenise just for this syntax highlighting purpose:

// This parser rule is only used for line tokenisation
// it doesn't natively understand more context than a single line.
// It is also more forgiving than the normal parser.
onlyLine: WS? TAG lineTerm #lineTag
| WS? OPTION lineTerm #lineOpt
| WS? STEP_DEFINE DEF_WS? stepDeclaration? lineTerm #lineStepDefine
| WS? FEATURE WS? text? lineTerm #lineFeature
| WS? BACKGROUND lineTerm #lineBackground
| WS? SCENARIO WS? text? lineTerm #lineScenario
| WS? SCENARIO_OUTLINE WS? text? lineTerm #lineScenarioOutline
| WS? EXAMPLES lineTerm #lineExamples
| WS? tableRowCell+ CELL_DELIMITER #lineTableRow
| WS? GIVEN statementBody? lineTerm #lineGiven
| WS? WHEN statementBody? lineTerm #lineWhen
| WS? THEN statementBody? lineTerm #lineThen
| WS? AND statementBody? lineTerm #lineAnd
| WS? text? lineTerm #lineText
;
lineTerm: STATEMENT_NEWLINE
| DEF_NEWLINE
| ROW_NL
| WS? EOF;

You might ask, why do I even need a parser for this? Surely a lexer is all I need to generate the tokens?

I generate a parse tree for each line because:

  • I want the parser to tell me what ‘alternative’ of the possible line structures I’m looking at.
  • The set of tokens that I report for syntax highlighting are based on similar structures to the full compile, which expect at least a partial parse tree.

Once I have the Antlr parse tree for the single line I can built a set of line tokens with the appropriate categorisations for each token.

If the line is a Step Reference (Given/When/Then), I ask the AutoStep linker if the Step Reference can be bound to an existing step.

The high-level pseudo-code for this whole process looks a little like this:

var parseTree = GetAntlrParseTree(lineText);

if(parseTree is StepReference stepRef)
{
    if(linker.TryBindStep(stepRef))
    {
        return GetTokensForBoundStep(stepRef);
    }

    return GetTokensForUnboundStep(stepRef);
}

return GetRegularTokens(parseTree);

Once the tokens are handed back to the Blazor App, they get turned into scopes and handed off to Monaco for rendering.

Compilation, Linking, and Message Markers

Ok, so we’ve got line tokenisation, and syntax highlighting. Now I want to show underline markers when something is wrong.

Monaco makes this an absolute breeze, with a concept called ‘markers’, which are for precisely this purpose, but let’s take a look at how this is arranged. First, let’s look at the line in the Razor file that renders our custom MonacoEditor component:

<MonacoEditor Uri="@currentFile.FileUri.ToString()"
              Value="@currentFile.Source.OriginalBody"
              ModelMarkers="currentMarkers"
              OnModelChanged="m => CodeChangedHandler(m.CurrentValue)"
              LanguageId="autostep" />

When the content of the Monaco Editor changes, after a short delay (so we don’t recompile after every keystroke), our CodeChangedHandler will be invoked, with the new content of the editor as an argument.

When currentMarkers changes, the MonacoEditor component will pass those new markers down to the Monaco Javascript.

When the code for the file is changed, we ask the Project Compiler to compile and link the entire project. Only those files that have changed actually get compiled.

When that has completed, we have a set of Compilation & Linker Messages for the file, for example:

(8,17,8,25): Error ASC00011: Not expecting an Examples block here; did you mean to define 'My Scenario' as a Scenario Outline rather than a Scenario?
(3,1): Error ASC20002: There are multiple matching step definitions that match this step.

To use those in Monaco, we just need to convert them into MarkerData structures, i.e. the format Monaco understands. I’ve defined a MarkerData class in C# that serialises directly to the equivalent Javascript structure.

private static MarkerData GetMarkerDataFromMessage(CompilerMessage msg)
{
    var severity = msg.Level switch
    {
        CompilerMessageLevel.Error => MarkerSeverity.Error,
        CompilerMessageLevel.Warning => MarkerSeverity.Warning,
        _ => MarkerSeverity.Info
    };

    var endPosition = msg.EndColumn;

    if(endPosition is null)
    {
        endPosition = msg.StartColumn;
    }
    else
    {
        // Expand message end to the location after the token
        endPosition++;
    }

    return new MarkerData($"ASC{(int)msg.Code:D5}", msg.Message, severity, msg.StartColumn, msg.StartLineNo, endPosition.Value, msg.EndLineNo ?? msg.StartLineNo);
}

Once I have the correct data structures, I can just pass those over to my TypeScript class using regular JS Interop, and call editor.setModelMarkers to update the set.

/**
    * Set the model markers for a text model.
    * @param textModelUri The URI of the text model.
    * @param owner The owner of the markers.
    * @param markers The full set of new markers for the model.
    */
setModelMarkers(textModelUri: string, owner: string, markers: editor.IMarkerData[])
{
    var modelCtxt = this.models[textModelUri];

    if (!modelCtxt) {
        throw "Specified model not created.";
    }

    editor.setModelMarkers(modelCtxt.textModel, owner, markers);
}

Hey, presto! Compilation errors, syntax highlighting, all in the browser with no server work beyond static file hosting!

What’s Next

Features going into the AutoStep Editor over the next few months include:

  • An actual User Interface, rather than just an Editor!
  • Intellisense, and automatic step suggestions as you type.
  • Hover documentation, showing step documentation if you hover over one.
  • Go-To-Reference for steps, that navigates to the Step Definition for a step if you defined a step in an AutoStep file.

Keep an eye on the repository if you want to see how it goes, there may well be another couple of follow-up posts as we make progress.

Categories
Uncategorized

.NET Asynchronous Disposal – Tips for Implementing IAsyncDisposable on your own Types

Background – Why Async Dispose?

The .NET Team recently added support for asynchronous disposal of objects, via a new IAsyncDisposable interface.

A lot of the examples you can find will use this to let you dispose of asynchronous streams, but it’s also useful for disposal of other objects that may potentially trigger I/O.

This allows you to write code like this (which works in .NET Core 3.0, with C# 8):

await using (var dbConnection = new SqlConnection(connString))
{
// Use your DB connection.
// The connection will get disposed of asynchronously at the end of the using block.
}
view raw program.cs hosted with ❤ by GitHub

Notice the await in front of the using statement? That will tell the using block to call DisposeAsync on the SqlConnection object when we exit the using block, instead of the regular Dispose method, and await on the result.

What’s the benefit of this over a typical using? Well, if the database connection needs to go over the network to reset the connection, it will return the thread to the thread pool to do other work, rather than blocking it while the Dispose takes place.

The great thing about .NET Core 3.0 is that for any services you have registered as Scoped (i.e. they only live for the duration of the current HTTP request) that implement IAsyncDisposable will be disposed of asynchronously at the end of the request, giving valuable thread time back to processing actual requests.

I recently added the functionality in the Autofac Dependency Injection library to support calling DisposeAsync on a lifetime scope, which in turn calls DisposeAsync on all services in that scope that implement IAsyncDisposable. This extends to if you use Autofac as your .NET Core Service Provider as well. The functionality will be released in Autofac 5.0.0, or you can check out the relevant GitHub PR now to see what changes went in.

I thought I’d use this blog post to help people write their own classes that implement IAsyncDisposable, since I couldn’t find a lot of documentation on it, and had to go digging into .NET Core code on GitHub to figure out the best approach.

Implement IDisposable As Well

IAsyncDisposable isn’t a replacement for IDisposable, it’s an additional way to dispose.

Basically, if you implement IAsyncDisposable in your class, you should probably implement IDisposable too and perform the synchronous equivalent of your disposal operation.

public class MyDisposableObject : IDisposable, IAsyncDisposable
{
private SqlConnection myResource = new SqlConnection("connection string");
public void Dispose()
{
// Sync dispose on my resource
myResource.Dispose();
}
public async ValueTask DisposeAsync()
{
// Async dispose on the resource
await myResource.DisposeAsync();
}
}

This goes double for library authors, who are not in control of the code that creates the object that needs to be disposed.

There’s a couple of reasons for this:

  1. If you don’t have a regular Dispose method, code that doesn’t run in an async context will have to block on your DisposeAsync to make it sync, which kind of defies the point, and is unpleasant:
private void NotAnAsyncMethod()
{
var disposableObject = new MyDisposableObject();
// Unpleasant
disposableObject.DisposeAsync().GetAwaiter().GetResult();
}
view raw NotAsync.cs hosted with ❤ by GitHub
  1. If your class gets put in a container, and then the container is disposed synchronously, an exception will be thrown (this is the behaviour of Autofac and the default .NET Core DI system), because these containers will refuse to call DisposeAsync from inside a regular Dispose:
// Get a host builder
var hostBuilder = CreateHostBuilder(args);
// Add our service as scoped.
hostBuilder.ConfigureServices(srv =>
{
srv.AddScoped<MyAsyncOnlyDisposableObject>();
});
// Get our container
var host = hostBuilder.Build();
using(var serviceScope = host.Services.CreateScope())
{
var myObject = serviceScope.ServiceProvider.GetRequiredService<MyAsyncOnlyDisposableObject>();
} // Exception thrown here
view raw program.cs hosted with ❤ by GitHub
The exception we get if we don’t dispose asynchronously.

Only Add IAsyncDisposable If You Need To

This one is pretty simple; you should only add IAsyncDisposable to your class if you or a derived class may allocate resources that also implement IAsyncDisposable.

Don’t do this:

class MyObjectWithALock : IDisposable, IAsyncDisposable
{
private SemaphoreSlim semaphore = new SemaphoreSlim(1, 1);
public void Dispose()
{
semaphore.Dispose();
}
public async ValueTask DisposeAsync()
{
// Please, no, no.
await Task.Run(() => semaphore.Dispose());
}
}

SemaphoreSlim doesn’t implement IAsyncDisposable, so all this does is use up another thread pool thread to run the Dispose.

Derived Classes

If you are writing a base class that might have derived classes with resources that need disposing asynchronously, you may wish to introduce a virtual DisposeAsync method if you also have a base Dispose method.

In this case, I would suggest making your default implementation call Dispose directly without awaiting and return synchronously:

class BaseClassThatMightHaveChildrenWithResources : IDisposable, IAsyncDisposable
{
public virtual void Dispose()
{
}
public virtual ValueTask DisposeAsync()
{
Dispose();
return default;
}
}

Base classes can override the DisposeAsync method if they have resources that can be disposed of asynchronously, otherwise they can just override Dispose.

Only Dispose Once (Sync or Async)

It’s recommended practice to make Dispose re-entrant, and only dispose of its resources once. With the asynchronous disposal behaviour, this is still true, and importantly, you should only allow either Dispose or DisposeAsync to actually do the dispose.

So your classes should have this pattern:

private class MyDisposableObject : IDisposable, IAsyncDisposable
{
private SqlConnection myResource = new SqlConnection();
private bool isDisposed = false;
public void Dispose()
{
if (!isDisposed)
{
isDisposed = true;
myResource.Dispose();
}
}
public async ValueTask DisposeAsync()
{
if (!isDisposed)
{
// Set isDisposed to true first
isDisposed = true;
await myResource.DisposeAsync();
}
}
}

The reason I set isDisposed to true in the above example before awaiting is because setting it afterwards would make it possible for a caller to double-dispose, by not awaiting on DisposeAsync, then calling Dispose. It’s unlikely, but possible.

If the class may be used in a multi-threaded context, consider using Interlocked methods to set isDisposed, to make sure two threads don’t try disposing at the same time.

Targeting netstandard2.0

This bit is mostly targeted at library developers, who might be targeting netstandard versions.

While the language implementations for asynchronous disposal are only available in netstandard2.1, there is a package from Microsoft that provides the IAsyncDisposable interface and related types for netstandard2.0 and .NET 4.6.1, Microsoft.Bcl.AsyncInterfaces (as David Fowler kindly pointed out to me in the Autofac PR).

This allows you to add conditional references that mean your library can implement asynchronous disposal in versions prior to .NET Standard 2.1, by adding the following conditional package reference:

<ItemGroup Condition=" '$(TargetFramework)' == 'netstandard2.0' or '$(TargetFramework)' == 'net461' ">
<PackageReference Include="Microsoft.Bcl.AsyncInterfaces" Version="1.1.0-preview1.19504.10" />
</ItemGroup>

Consider Adding GC.SuppressFinalize to DisposeAsync

If your class has a finalizer (or a derived class may have one), then you may already be calling GC.SuppressFinalize(this) in your Dispose method.

Because your DisposeAsync method is another Dispose method, it should also call GC.SuppressFinalize so the GC doesn’t have to call your destructor later.

This is a more complete example that provides protected virtual methods for disposal, in line with the recommended IDisposable pattern:

private class MyDisposableObject : IDisposable, IAsyncDisposable
{
private SqlConnection myResource = new SqlConnection();
private bool isDisposed = false;
public void Dispose()
{
if (!isDisposed)
{
isDisposed = true;
Dispose(true);
GC.SuppressFinalize(this);
}
}
protected virtual void Dispose(bool disposing)
{
if(disposing)
{
myResource.Dispose();
}
}
public async ValueTask DisposeAsync()
{
if (!isDisposed)
{
isDisposed = true;
await DisposeAsync(true);
GC.SuppressFinalize(this);
}
}
protected async ValueTask DisposeAsync(bool disposing)
{
if (disposing)
{
await myResource.DisposeAsync();
}
}
}

Putting GC.SuppressFinalize in the DisposeAsync method will actually cause a violation of the CA1816 analyzer rule if you have the analyzers installed, that says GC.SuppressFinalize should only be called from Dispose. I’m hoping that the rule will get updated at some point, but for now you may need to suppress that rule for the DisposeAsync method.

Wrap-Up

So, IAsyncDisposable can be really handy if you have resources to dispose of that may use I/O in that disposal, but be careful using it, and only add it if you actually need to!

Categories
Uncategorized

ASP.NET Core 3.0 – Logging in the Startup Class (with NLog)

With ASP.NET Core 3.0, the ability to inject an ILogger or ILoggerFactory into the Startup class has been removed, so we can no longer do this:

public class Startup
{
public Startup(IConfiguration configuration, ILoggerFactory logFactory)
{
Logger = logFactory.CreateLogger<Startup>();
}
private ILogger Logger { get; }
public void ConfigureServices(IServiceCollection services)
{
Logger.LogInformation("Registering Services");
// And the rest
}
}
view raw Startup.cs hosted with ❤ by GitHub

I understand why this has been done, because creating a temporary DI container just for the startup process adds a lot of complexity and potential for errors.

However, my ConfigureServices method (and the new ConfigureContainer method added in 3.0) does quite a bit of work, including loading extension assemblies; I want to be able to log during that time.

I also want to make sure I only pass around the ILogger from the Microsoft.Extensions.Logging namespace to other objects used at startup.

The Workaround

I use NLog for my logging (https://nlog-project.org/). In my Program’s Main method I configure it like so:

public static void Main(string[] args)
{
// NLog: setup the nlog config first; this will configure all subsequent nlog factories
// with our nlog config.
NLogBuilder.ConfigureNLog("nlog.config");
var host = Host.CreateDefaultBuilder(args)
.ConfigureWebHostDefaults(webHostBuilder =>
{
webHostBuilder
.UseContentRoot(Directory.GetCurrentDirectory())
.UseStartup<Startup>();
})
.ConfigureLogging(logging =>
{
logging.ClearProviders();
logging.SetMinimumLevel(LogLevel.Trace);
})
// Use NLog to provide ILogger instances.
.UseNLog()
.Build();
host.Run();
}
view raw Program.cs hosted with ❤ by GitHub

You can grab details on how to create an nlog.config file from the NLog docs, I won’t go into it here.

Then, in my Startup class, I can create the NLogLoggerProvider class (this is sort of a factory for creating the Microsoft ILogger instances), and from that I can get my logger instance:

public class Startup
{
public Startup(IConfiguration configuration)
{
// Get the factory for ILogger instances.
var nlogLoggerProvider = new NLogLoggerProvider();
// Create an ILogger.
Logger = nlogLoggerProvider.CreateLogger(typeof(Startup).FullName);
}
public void ConfigureServices(IServiceCollection services)
{
Logger.LogInformation("Registering Services");
// And the rest
}
}
view raw Startup.cs hosted with ❤ by GitHub

Hey presto, logging in the Startup class. Note that we are obviously outside the entire DI system for this logging (which is sort of the point).
